AQI Forecasting — CNN-LSTM Hybrid

A hybrid CNN-LSTM neural network trained to forecast PM2.5 air quality concentrations 24 hours ahead — combining convolutional feature extraction with recurrent temporal modelling in a modular PyTorch pipeline.

Tech Stack

Layer	Tools
Language	Python
Deep Learning	PyTorch — custom CNN + LSTM module implementations
Feature Engineering	Lag features · rolling window averages
Evaluation	RMSE · R² score
Experiment Tracking	experiments_log.md — per-run metrics and observations

Problem & Approach

Air quality forecasting is a sequence prediction problem: PM2.5 readings are temporally dependent, autocorrelated, and driven by both local patterns and longer-range atmospheric trends. A pure LSTM captures long-range dependencies but struggles with local feature extraction. A CNN excels at extracting local patterns but has no memory across time.

The hybrid CNN-LSTM combines both: convolutional layers extract local temporal features from the input sequence, which are then fed into LSTM layers that model the long-range dependencies — giving the model the best of both architectures.

Model Architecture

Component	Detail
Input	Lagged PM2.5 readings + rolling averages (engineered features)
CNN block	1D convolutions — extract local temporal patterns from the input window
LSTM block	Recurrent layers — model sequential dependencies across time steps
Output	Single-step 24-hour PM2.5 forecast
Baseline	Linear Regression — performance lower bound for comparison
Loss	RMSE (Root Mean Squared Error)

Model Architecture — Core Class

The CNN block reshapes the input for 1D convolution, extracts local temporal patterns, then hands off to the LSTM which models long-range dependencies across time steps.

class HybridCNNLSTM(nn.Module):
    def __init__(self, input_size, hidden_size=64, output_size=1, dropout=0.2):
        super(HybridCNNLSTM, self).__init__()
        self.cnn  = nn.Conv1d(in_channels=input_size, out_channels=hidden_size, kernel_size=1)
        self.lstm = nn.LSTM(input_size=hidden_size, hidden_size=hidden_size, batch_first=True)
        self.dropout = nn.Dropout(dropout)
        self.fc   = nn.Linear(hidden_size, output_size)

    def forward(self, x):
        x_cnn   = x.permute(0, 2, 1)           # (Batch, Features, Seq)
        out_cnn = torch.relu(self.cnn(x_cnn))   # CNN feature extraction
        out_cnn = out_cnn.permute(0, 2, 1)       # (Batch, Seq, Features)
        out_lstm, _ = self.lstm(out_cnn)          # LSTM temporal modelling
        last_step   = self.dropout(out_lstm[:, -1, :])
        return self.fc(last_step)

Feature Engineering

24-hour lookahead target created by shifting PM2.5 forward by 24 rows. Lag features and temporal context (hour, weekday, month) are added as model inputs.

def engineer_features(df):
    df['target_pm25_next_day'] = df['pm2_5'].shift(-24)  # future target
    df['pm2_5_current']        = df['pm2_5']
    df['pm2_5_lag24']          = df['pm2_5'].shift(24)   # same hour yesterday
    df['hour']        = df.index.hour
    df['day_of_week'] = df.index.dayofweek
    df['month']       = df.index.month
    return df.drop(columns=['pm2_5']).dropna()

Pipeline

1. 01Install dependencies via pip (requirements.txt)
2. 02Run data_preprocessing.py — clean raw data, engineer lag and rolling-average features
3. 03Train baseline_model.py — linear regression reference
4. 04Train hybrid_model.py — CNN-LSTM architecture, log RMSE and R² per epoch
5. 05Compare model performance and review outputs in results/

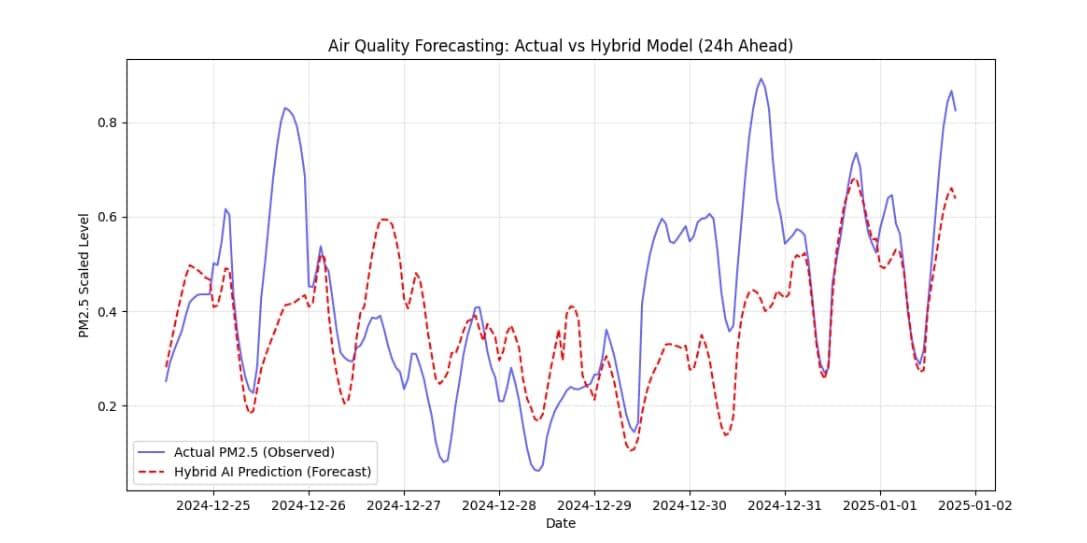

Results

---
